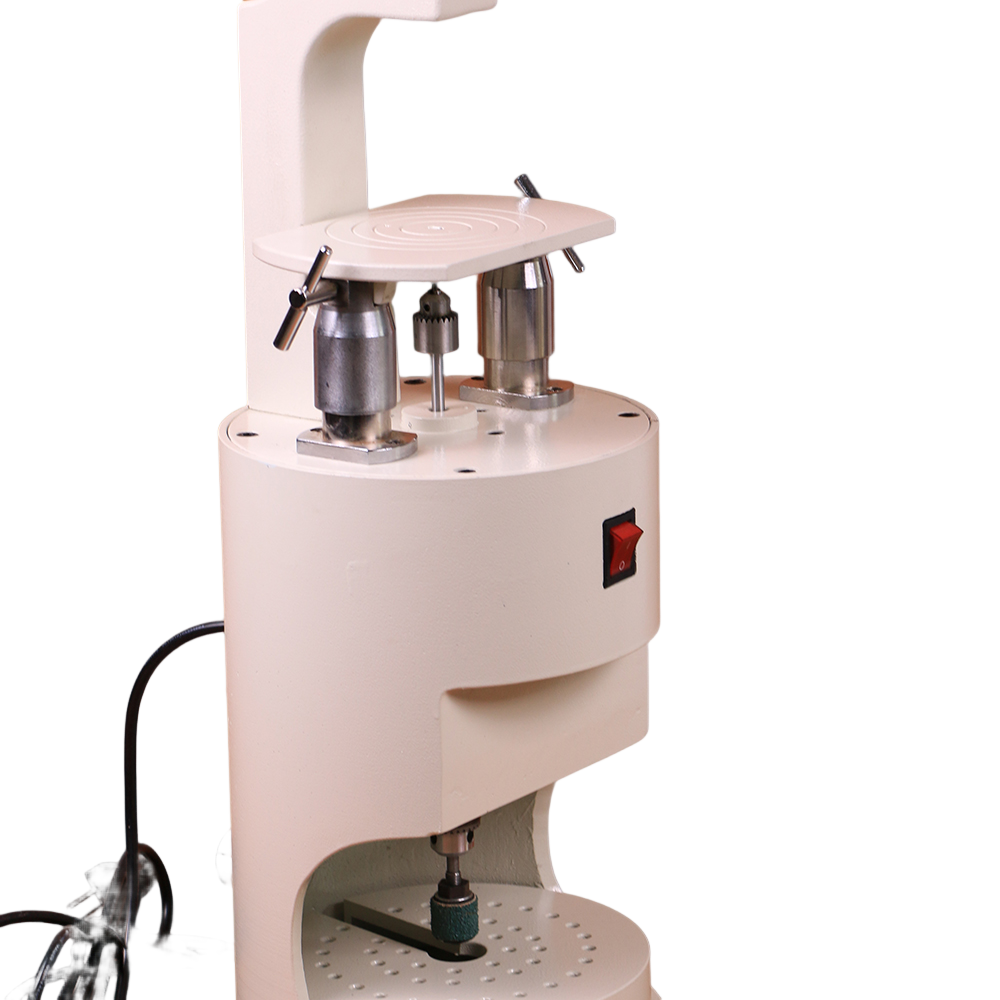

Laser Pin Drilling Machine With Tongue Trimmer

Plaster casting models preparation by laser pin positioning and tongue trimmer all in one system

This cutting-edge device is designed to streamline the process of drilling plaster models or plexiglass and PVC bases for the application of conical pins in the removable stump technique, making it faster, easier, and more accurate than ever before.

The upper and Lower separation function design

• Upper-laser pin position system and drilling function

The drill machine is equipped with a powerful laser pointer system, which enables fast and precise alignment of the perforation. By simply holding the model in the correct position, as indicated by the red laser beam, and lowering the working surface towards the rotating drill, you can achieve perfect results every time.

The machine boasts high speed, low noise, high precision, and simple operation, making it ideal for both professional and amateur users.

• Lower-lingual side trimming

The equipment also features an inner grinding machine on the lingual side, which can be fitted with either carbide or rubber grinding heads, making it an invaluable addition to any dental laboratory or clinic.

Benefits for casting model production:

• Increased efficiency: The machine allows for faster and more accurate drilling, reducing the amount of time and effort required for each procedure.
• Improved precision: The laser pointer system ensures precise alignment of the perforation, resulting in better fitting and more secure conical pins.
• Greater versatility: The machine can be used on a variety of materials, including plaster models, plexi-glass, and PVC bases.
• Increased productivity: With its simple operation and high speed, the machine can increase the productivity of dental laboratories and clinics, allowing for more procedures to be completed in less time.

Parameter

• Voltage:220v/50Hz,110V/60Hz  ±10%
• Motor of Power:260w
• Motor rotation: 2800rpm
• Voltage of laser: 3V 350Ma
• Net weight: 13Kg
