Implant Abutment Electrolytic Cell

Invest in the future of your dental practice with our cutting-edge implant abutment electroplating device, ensuring top-quality abutments with every use.

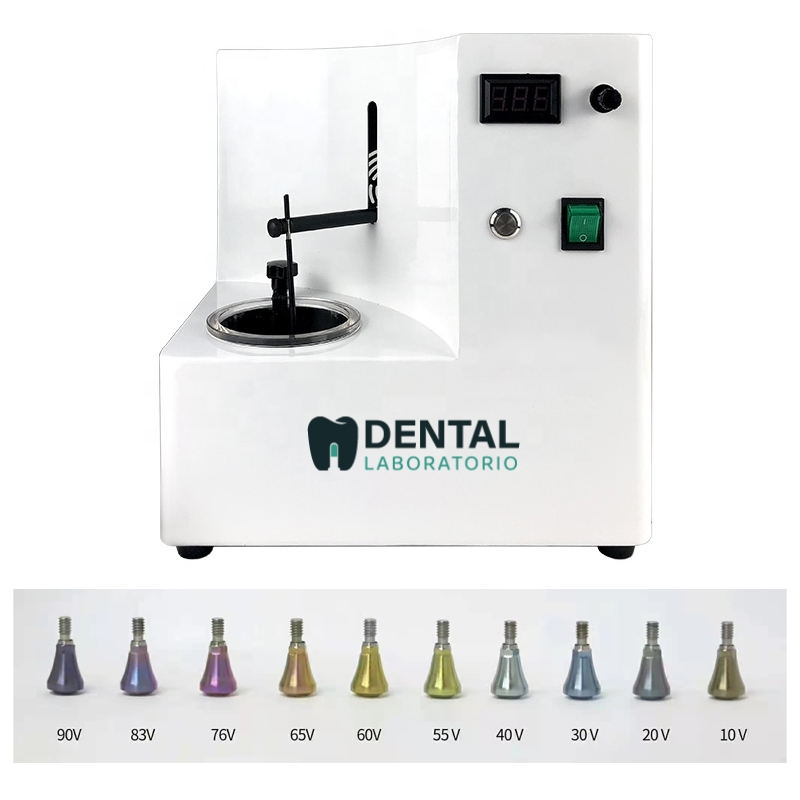

The rotating button on the right-up position enables to adjust of the voltage, the higher the voltage, the darker the color. The technician operates the starting button, and the electrolytic-plated color procedure will complete after 3 seconds.

Operation procedures

1. Gather the necessary materials and equipment needed for the task, such as an implant abutment, a container for the electrolytic bath, and a power source.

• Using a mixture of baking soda and pure water in a 5:100 ratio as the electroplating solution.
• Pour approximately 1/2 cup of the solution into the cup provided.

2. Clean the implant abutment thoroughly with a cleaning solution.

3. Fill the container with the electrolytic bath solution.

4. Hang the titanium abutment prosthesis part on the hook.

5. Connect the power source to the container and turn it on.

6. Monitor the electrolytic bath until the implant abutment is covered with a thin layer of metal, usually for a few seconds.

Benefits in dentistry

Dental labs can provide dentists with a range of services in a more efficient manner, allowing dentists to focus on patient care and other aspects of the business.

By outsourcing dental laboratory services, dentists can save time and money by not having to purchase or maintain the expensive equipment and supplies required for many dental procedures.

Dentists can be sure that their patients are receiving the best possible care.

Parameter:

• Voltage: 220V/50Hz, 110V/60Hz
• Power: 500W
• Size: 32*30*26cm
• Weight:16Kg
