Air-powered Denture Makers

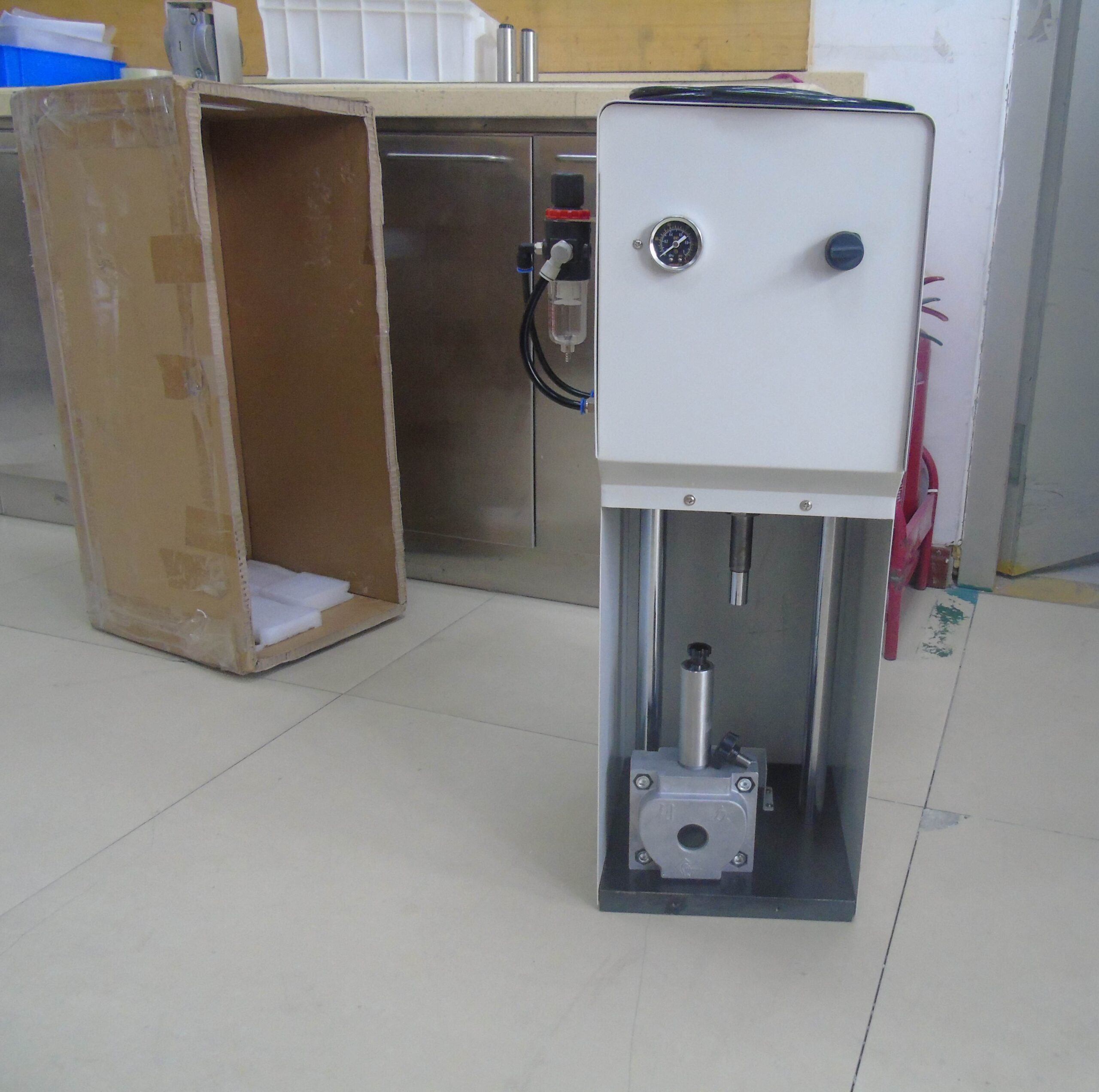

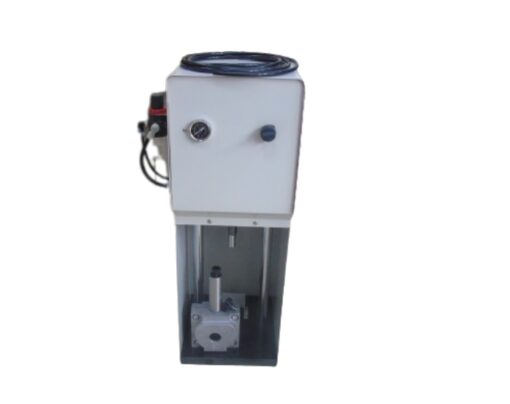

Our air-powered denture makers bring a new level of efficiency to denture production. This advanced equipment uses an air-driven injection system, eliminating the need for electricity. It enables dental lab technicians to create full and partial dentures with ease.

Designed specifically for fabricating dentures, this system supports Heat-Cured Acrylic Denture Bases and Self-Cured Acrylic Resin Materials.

Precise Injection System

Once the acrylic resin powder and water are mixed, the air-powered system injects the material into pre-made molds. The air-driven mechanism ensures perfect mold filling, leaving no gaps or uneven surfaces. This guarantees dentures that fit comfortably and function effectively.

Technical table:

Key Features:

• Air-driven injection molding technology requires no electricity
• Simplified operation steps compared to traditional compression method
• Avoids dimensional inaccuracies of traditional compression denture making
• Saves denture material and reduces trimming time of final product
• Allows for storage of tools, materials, and equipment in base of unit
• Durable steel construction with compact footprint
• Adjustable air pressure up to 0.35 MPa
• Smooth injection control with clockwise rotating knob
• Side overflow outlets indicate completed injection cycle

Operation procedures

1. Remove wax from the model tray using the same method as the traditional approach.
2. Mix the denture material in the proper proportions and place it in a plastic bag (preferably a self-sealing bag of suitable size).

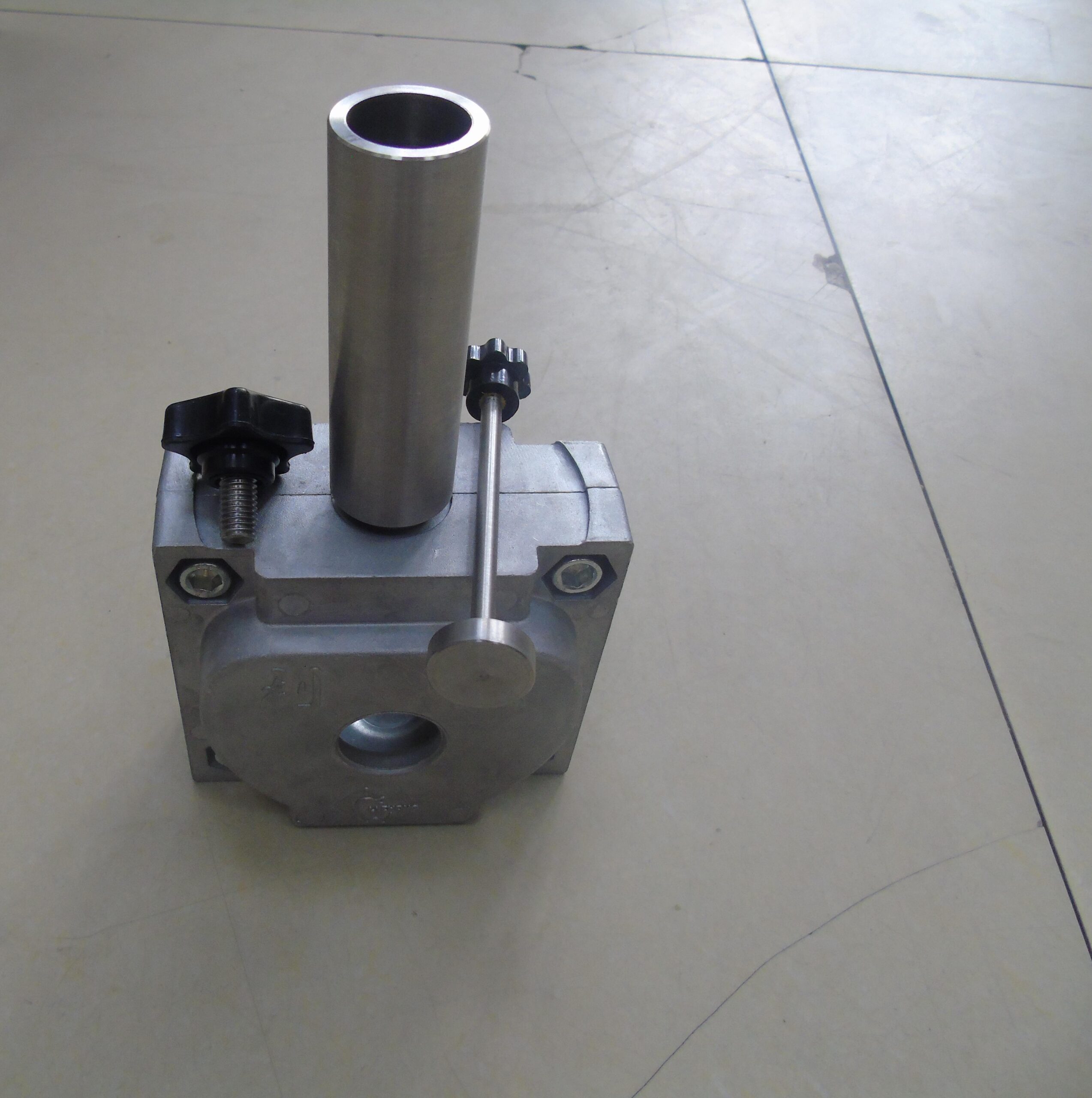

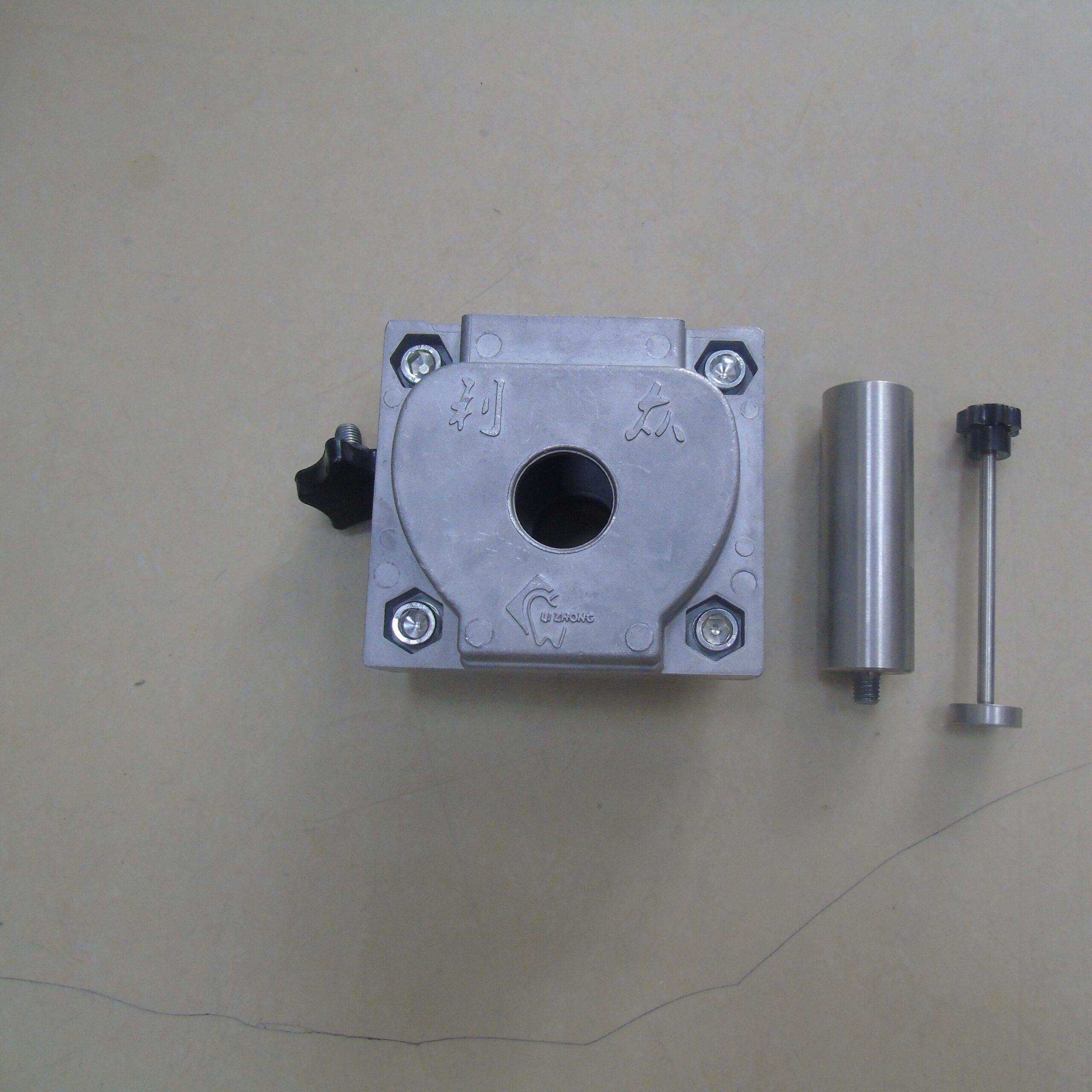

3. Knead the bagged denture material into a cylindrical shape and insert it into the material cylinder.
4. Use the adjusting rod to push the denture material to the bottom of the cylinder.
5. Puncture the plastic bag from the threaded end of the cylinder using a sharp object.
6. Unscrew the adjusting rod and insert the compression block into the cylinder.
7. Screw the cylinder into the inlet of the model tray.
8. Connect the injection machine to an air compressor, adjust the air pressure to 0.25-0.35 MPa (do not use excessively high air pressure), place the model tray in the injection machine, and turn the knob clockwise to start the injection.
9. When denture material flows out of the overflow hole on the side of the model tray, the process is complete.
10. Remove the model tray from the machine, unscrew the cylinder.
11. Screw in the backflow plug, then boil the tray to polymerize the denture material.
