Dental Zirconia Sintering Furnace High-Capacity, Touchscreen, and Accurate Temperature Control

Zirconia Sintering Furnace Supports User-defined, and Fast-speed

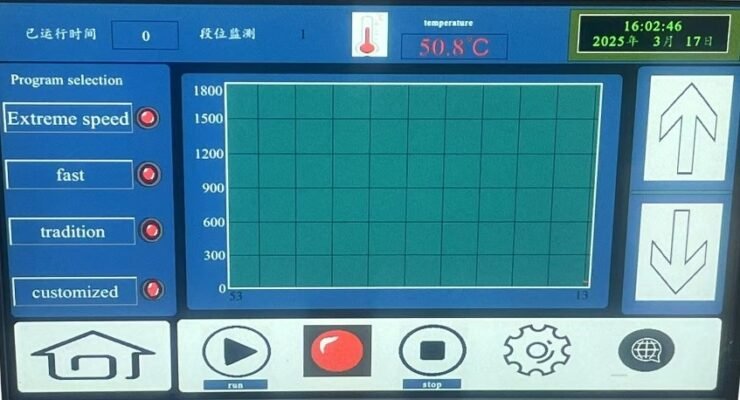

The furnace product features of touch screen, making it easy to set up a zirconia sintering program.

The dental zirconia sintering furnace comes to a smart temperature control setting making the zirconia sintering accurate within error at ±1℃. The accessories of the heating elements made of MoSi2 ( Silicon molybdenum rods ) mad ensure the zirconia sintering procedure smoothly.

There are 4 programs settings on the dental zirconia sintering furnace touch screen, which enable to completion of 80pcs zirconia restoration workpiece at one time(3 crucibles) and takes 3 hours to complete.

• Rapid sintering;
• Germany zirconium;
• Normal sintering;
• User-defined/Custom

The zirconia sintering furnace dental equipment design with power-off memory function, so that it can continue to work on the sintering zirconia procedure from any phase of program setting.

Feature

• Pure color touch screen operation panel;
• The high-sensitivity panel, easy to operate, let sintering start at a touch;
• Real-time monitoring of program operation, real-time temperature collection, accurate temperature control;
• Built-in 4 setting sintering programs to choose from, including user-custom;
• Multi-point heating makes the temperature rise more stable and even, greatly reducing the chance of realizing fracture.

Application:

The touchscreen zirconia sintering furnace streamlines workflow in dental labs by automatically firing up to 80 dental zirconia pieces with precision temperature control. This high-capacity furnace with built-in sintering programs increases dental lab productivity and restorative quality.

Technical

• Overall dimension:57x34x38cm
• Max.Temperature：1700℃
• Temperature Accuracy：±1℃
• Power：1000W
• Voltage：110/220V, 50/60HZ
• Chamber Size：130mm*110mm*70mm
• Total Program No.：4 programs
• Net Weight：46 KG

Our sintering tube data:

FAQ

General Questions

1. What is the purpose of the zirconia sintering furnace? The furnace is designed to streamline workflow in dental labs by automatically firing up to 80 dental zirconia pieces with precision temperature control.

2. What are the key features of the furnace? The furnace features a touch screen operation panel, high-sensitivity panel, real-time monitoring of program operation, real-time temperature collection, and accurate temperature control.

Operating the Furnace

1. How do I set up a zirconia sintering program?  The furnace comes with a touch screen that makes it easy to set up a zirconia sintering program.

2. Can I customize the sintering program? Yes, the furnace has a user-defined/custom program setting that allows you to create your own sintering program.

3. How many programs can I set up on the furnace? The furnace has 4 built-in sintering programs to choose from, including user-custom.

Fast-Speed Sintering

1. Can the furnace support fast-speed zirconia sintering? Yes, the furnace can support fast-speed zirconia sintering within 2 hours.

Maintenance and Support

1. Does the furnace have a power-off memory function? Yes, the furnace has a power-off memory function that allows it to continue working on the sintering procedure from any phase of program setting.

2. Is there any technical support available for the furnace? Yes, technical support is available for the furnace.

Accessories

1. Are the heating elements accessories available for purchase separately? Yes, the heating elements accessories are available for purchase separately at a good price.
