Dental Polymerizer Cooker

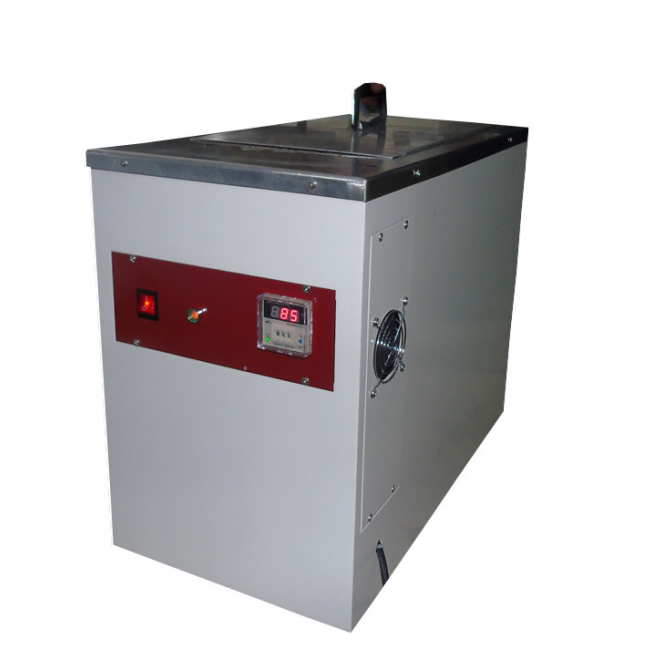

Dental polymerizer cooker

Hot Aggregator is the specific equipment for polymerizing the different kinds of dental materials.

Specification

Installation

   This dental polymerizer cooker should be installed to the easily operated workstation, the plug seat must be the independent electrical outlet, and the current capacity of the electrical outlet must correspond to the requirement of the equipment’s power, so does the guideline which is connected with the electrical outlet. The earth wire of the electrical outlet must be connected with the ground good.

Installation and Usage

  1, Read this manual carefully before using it.

  2, To infuse adequate water in the water tank.

  3, Switching on the power wire and starting up. Open the power switch of the equipment panel, by now, the indicator light of the temperature control instrument getting bright, and the numeral of the temperature display screen also getting bright.

  4, The setting of the constant temperature of the temperature control instrument.

   1) Pressing the “” button or  “” button for 3 seconds, and the numeral of the display screen will flash, at this time, the worker can set the constant temperature by pressing the “” button or  “” button. Pressing the “set” button when the numeral you need is appearing, the numeral of the display screen will stop flashing. Then it will show the actual temperature of the water tank again.

   2) The setting of the value of temperature return difference (HY): Pressing the “set” button, when the “HY” and numeral appear alternately on the screen, the worker can press the “” button or “” button to change the return difference value(Return difference value is that the temperature difference of the constant heating and stop heating).

   3)The error correction of the sensor and the actual temperature(SC): After setting the “HY” parameter, pressing the “set” button, it will show the SC sign, and by this time, when the “SC” and numeral appear alternately on the screen, the worker can modify the error value of the sensor and the actual temperature by pressing the “” button or ““button.

• Cautions

  1. Please read the manual carefully before using this dental polymerizer cooker equipment, and handling it on the basis of the manual strictly.

  2. The electrical outlet must be connected with the ground good in case of hurting anybody. Before checking and replacing the fuse wire, the worker must cut off the main power.

  3. Switching on the power after infusing the water in the water tank, it is not allowed to do the dry heating, it will destroy the equipment.

  4.When the dental polymerizer cooker has malfunctioned, it should be maintained by our company’s or the distributors in the local’s technical officials. The users will not disassemble the equipment by themselves. If any accidents happened, our company will have not the responsible for them.

• Maintain

  1.This equipment’s Warranty period is 1 year, and we can mend it all the lifetime. If the damage is made by man or wrong operation, the mending fee is undertaken by the users.

  2. Heating pipe and another easily broken unit, the Warranty period is 3 months, if the users need to mend the unit, please call us or send emails to us.
